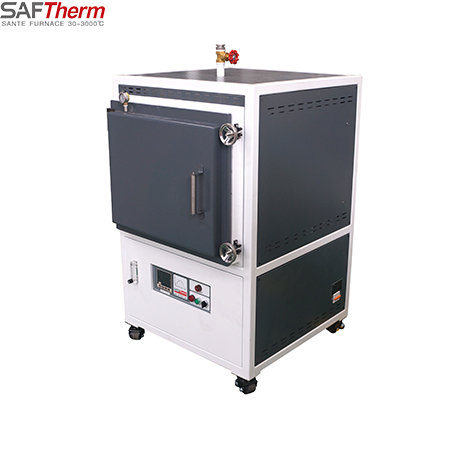

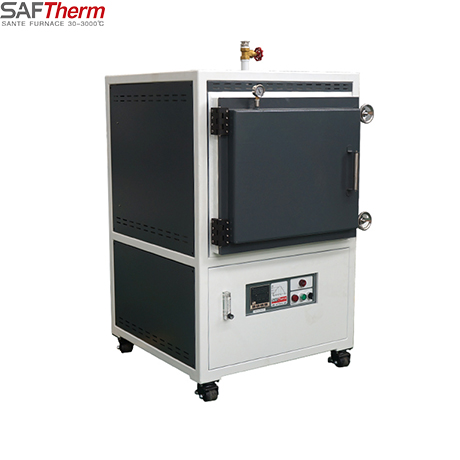

1200°C Amtosphere Furnace

Description

The furnace body of the 1200C chamber atmosphere furnace has a flange-type sealed structure. During the heat treatment of materials, protective gases such as nitrogen, argon, and oxygen can be introduced into the heat treatment of carbon materials, metal materials, and biomass materials. It can also be used for lithium Sintering of battery ternary materials.

Features

Furnace shell

1、The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti- corrosion.
2、 Sturdy metal tank shell structure with low furnace surface temperature

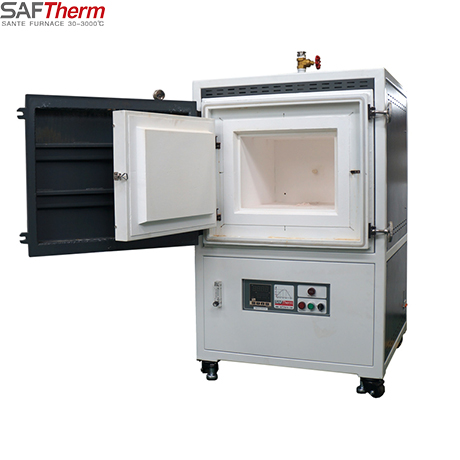

3、Furnace door with flange type sealing structure and manual screw compression with side door way for easier operating

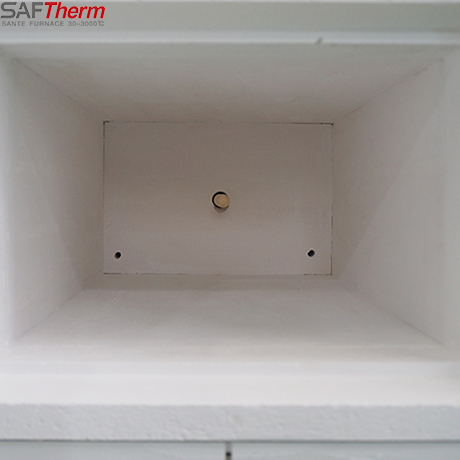

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and other high-quality insulation board heat shielding backing, which does not contain asbestos components, low heat loss and low energy consumption

Heating system

1、High-quality heating element installed on both sides of the furnace safely and firmly with free heat radiation heating in the furnace chamber and energy saving and high efficiency for long service life
2、Heating element on both sides (left and right) for good uniformity in the furnace

Temperature Control Panel

1、PID with SSR control mode for precise temperature control
2、International standard thermocouple with long service life
3、The studio chamber size can be selected up to 1000L, suitable for factories production

Program Controller

1、Advanced controllers for complex process needs
2、Simple and direct operation, flexible programming
3、Programmable 30 program segments for a single curve
4、Over temperature and fault alarm with automatic safety protection

Vacuum Atmosphere Function

1、The furnace chamber has adjustable air inlet and air outlet port, which can be passed into the protective gas
2、 High-performance rotary vane vacuum pump, which can obtain a vacuum degree of 20000pa
3、Optional air circuit control unit, the control unit can choose 1-3 adjustable gas float meter

Technical Parameter

Product Model	Chamber Size （mm）	Volume	Max Temp	Work Temp	Voltage	Power	Heating Element	Controller Accuracy
STQ-8-12	200×300×120	8L	1200℃	1100℃	220V	3KW	HRE	±1℃
STQ-12-12	200×300×200	12L	1200℃	1100℃	220V	4KW	HRE	±1℃
STQ-18-12	250×300×250	18L	1200℃	1100℃	220V	6KW	HRE	±1℃
STQ-30-12	300×500×200	30L	1200℃	1100℃	380V	7.5KW	HRE	±1℃
STQ-8-14	200×200×200	8L	1400℃	1350℃	220V	5KW	SIC	±1℃
STQ-12-14	200×300×200	12L	1400℃	1350℃	220V	5KW	SIC	±1℃
STQ-18-14	250×300×250	18L	1400℃	1350℃	220V	6KW	SIC	±1℃
STQ-36-14	300×400×300	36L	1400℃	1350℃	380V	12KW	SIC	±1℃
STQ-45-14	300×500×300	45L	1400℃	1350℃	380V	14KW	SIC	±1℃
STQ-8-17	200×200×200	8L	1700℃	1600℃	220V	5KW	MoSi2	±1℃
STQ-12-17	200×300×200	12L	1700℃	1600℃	220V	6KW	MoSi2	±1℃
STQ-20-17	250×320×250	20L	1700℃	1600℃	380V	7KW	MoSi2	±1℃
STQ-36-17	300×400×300	36L	1700℃	1600℃	380V	13KW	MoSi2	±1℃

Accessory

1. Furnace body	1 set
2. Temperature controller	1
3. Power cord 3 meters	1
4. Thermocouple	1
5. Instruction manual	1
6. Crucible Tong	1
7. High temperature gloves	1 pair

Advantage

1 Year Warranty We can provide very professional commercial support, technical support and document support
22 Years Experience We have more than 22 years of experience in Electirc Heating Equipment,Excellent temperature field uniformity is our strength
R&D Design Team Professional design and development team, to provide you with professional and reasonable heat treatment solutions
Quality Control Rigorous quality control process, each process process traceable, to provide customers with high quality products
