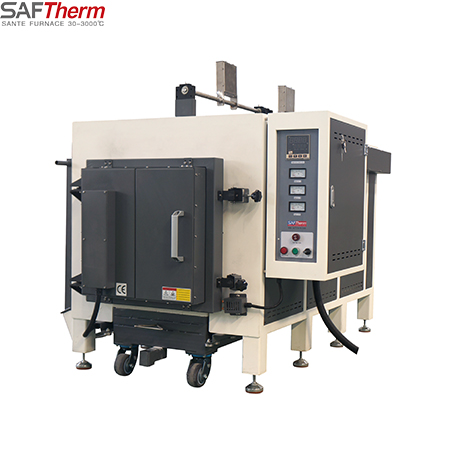

1200°C Bogie Hearth Furnace

Description

The trolley-type sintering furnace is mainly developed for the sintering of large-scale materials or small-scale production applications. High-quality furnace materials and new construction technology for large-capacity furnaces, stable temperature control and intelligent walking trolley system can ensure the reliable quality of sintered products. It is used in the fields of new materials such as metal materials, ceramic materials, nanomaterials, and semiconductor materials.

Features

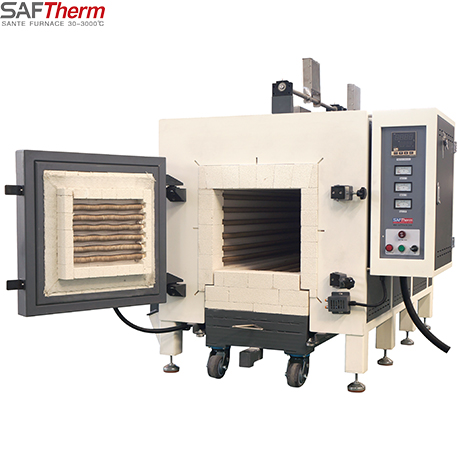

Multi-layer heat insulation design of refractory materials, multi-layer lightweight refractory brick lining or ceramic fiber lining with strong structure, high-strength stacking and splicing, no asbestos components, small heat loss and low energy consumption.

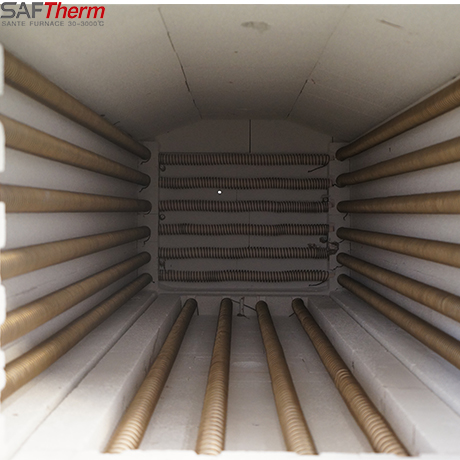

Heating on three sides (left, right and bottom side) to achieve good uniformity in the furnace.
The silicon carbide bottom plate covers and protects the bottom of the furnace, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing.

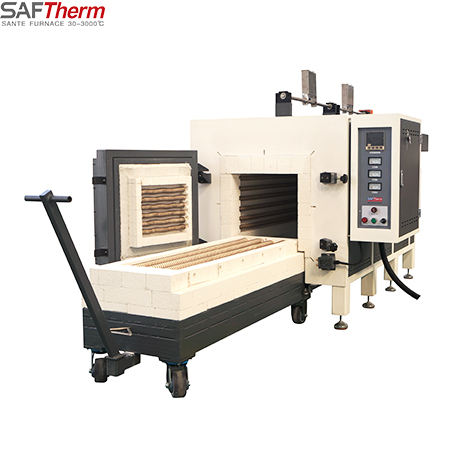

The trolley at the bottom moves smoothly and without impact.
The material is loaded from bottom, and the workbench can be moved.
Can be customized according to process requirements.
Advanced control and adjustment system, precise temperature control.
There is an automatic flip-type exhaust port on the top of the furnace to realize the debinding of materials.
The furnace top circulation fan is selected to increase the uniformity of the temperature field in the furnace.
Furnace temperature and air rapid cooling control unit can be selected to realize rapid cooling within the furnace temperature of 400°C.
Optional manual and automatic air intake control unit.

Technical Parameter

Model	Chmaber size（mm）	volume	Max temp.	Working temp.	voltage	power	Heating element	Temp precision
STT-96-12	400×600×400	96L	1200℃	1100℃	380V	18KW	HRE	±1℃
STT-288-12	600×800×600	288L	1200℃	1100℃	380V	30KW	HRE	±1℃
STT-640-12	800×1000×800	640L	1200℃	1100℃	380V	45KW	HRE	±1℃
STT-1200-12	1000×1200×1000	1200L	1200℃	1100℃	380V	80KW	HRE	±1℃
STT-2160-12	1200×1500×1200	2160L	1200℃	1100℃	380V	150KW	HRE	±1℃
STT-96-14	400×600×400	96L	1400℃	1300℃	380V	21KW	SIC	±1℃
STT-288-14	600×800×600	288L	1400℃	1300℃	380V	30KW	SIC	±1℃
STT-640-14	800×1000×800	640L	1400℃	1300℃	380V	50KW	SIC	±1℃
STT-1200-14	1000×1200×1000	1200L	1400℃	1300℃	380V	100KW	SIC	±1℃
STT-2160-14	1200×1500×1200	2160L	1400℃	1300℃	380V	200KW	SIC	±1℃
STT-96-17	400×600×400	96L	1700℃	1600℃	380V	25KW	MoSi2	±1℃
STT-288-17	600×800×600	288L	1700℃	1600℃	380V	50KW	MoSi2	±1℃
STT-640-17	800×1000×800	640L	1700℃	1600℃	380V	80KW	MoSi2	±1℃
STT-1200-17	1000×1200×1000	1200L	1700℃	1600℃	380V	150KW	MoSi2	±1℃
STT-2160-17	1200×1500×1200	2160L	1700℃	1600℃	380V	300kw	MoSi2	±1℃

Accessory

1. Furnace body	1 set
2. Temperature controller	1
3. Power cord 3 meters	1
4. Thermocouple	1
5. Instruction manual	1
6. Crucible Tong	1
7. High temperature gloves	1 pair

Advantage

1 Year Warranty We can provide very professional commercial support, technical support and document support
22 Years Experience We have more than 22 years of experience in Electirc Heating Equipment,Excellent temperature field uniformity is our strength
R&D Design Team Professional design and development team, to provide you with professional and reasonable heat treatment solutions
Quality Control Rigorous quality control process, each process process traceable, to provide customers with high quality products
