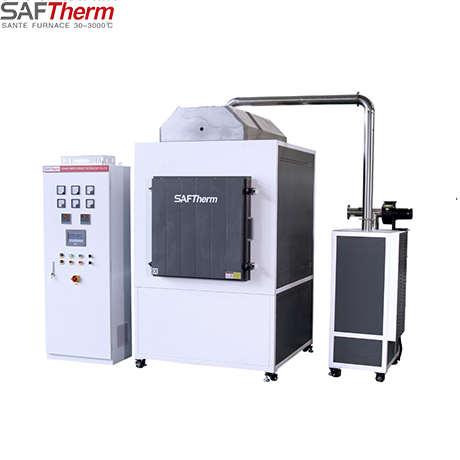

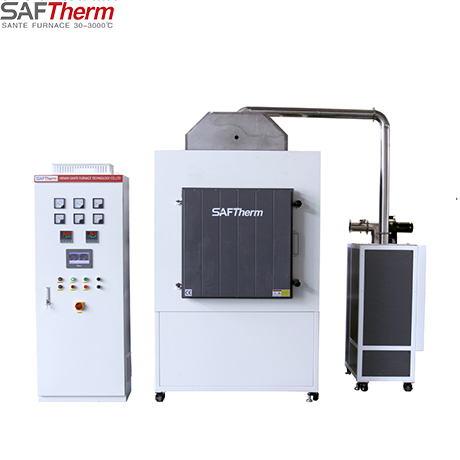

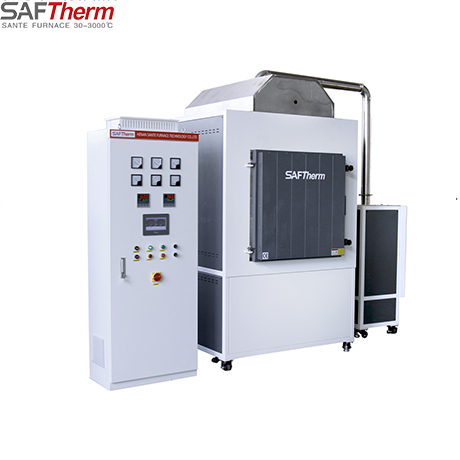

This equipment is used in laboratories of colleges and universities, scientific research institutes and industrial and mining enterprises to carry out debinding and sintering heat treatment on ceramics, ceramic base, ceramic powder, structural ceramics, functional ceramics, electronic ceramics, ceramic sensors and other precision ceramic device development, special materials, building materials, non-metals and other chemical materials.
This equipment is used in laboratories of colleges and universities, scientific research institutes and industrial and mining enterprises to carry out debinding and sintering heat treatment on ceramics, ceramic base, ceramic powder, structural ceramics, functional ceramics, electronic ceramics, ceramic sensors and other precision ceramic device development, special materials, building materials, non-metals and other chemical materials.
1) Advanced lightweight foam ceramic lining, new construction structure, pure and pollution-free furnace.
2) High-precision PLC intelligent temperature and process control system, unmanned, efficient and safe.
3) Horizontal structure of furnace bottom, providing horizontal loading of samples.
4) Fresh air preheating system, providing sufficient debinding of materials
5) Multi-point air intake structure, ensuring uniformity of furnace temperature field, no cracking and deformation of products during heat treatment

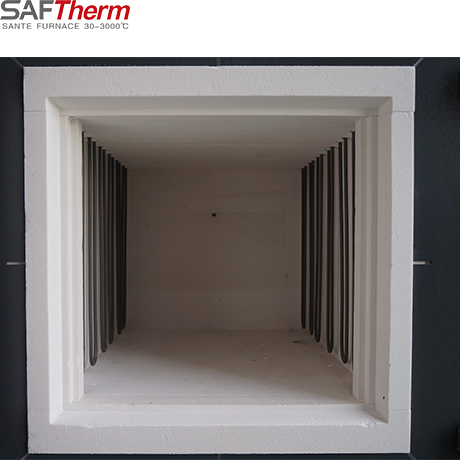

6) High-quality silicon molybdenum rod heating elements are evenly distributed, scientific thermal distribution, high temperature and pollution-free, strong and durable
7) Optional tail gas cracking treatment device, effectively solving the pollution emission of debinding gas
8) Optional ceramic tooling, product layered loading, high output and good consistency
|
Model |
STDT-288-17 |
|
furnace size |
600×800×600mm |
|
Working area size |
40×500×400mm |
|
Rated temperature |
1700℃ |
|
Power supply voltage |
380V/50KW |
|
Heating element |
silicon molybdenum rod |
|
Insulation material |
Lightweight alumina foam ceramic |
|
Temperature control accuracy |
±1℃ |
|
Temperature measuring element |
B type |
|
Temperature controller |
7-inch intelligent microcomputer PID touch meter, SCR voltage regulation control, PID parameter self-tuning function; 4 programmable groups of 10 program segments, program heating, program insulation, program cooling |
|
Heating rate |
1-10C/min freely adjustable |
|
furnace structure |
Furnace temperature control split structure, independent temperature control box |
|
Debinding system |
Multi-point fresh air preheating system and furnace top automatic debinding system |
|
Process control |
High-precision PLC Multi-point |
|
Equipment protection |
Modular control, which will send out sound and light alarm signals for over-temperature and broken circuit in the working process, and automatically complete the protection action |
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in the event of a short circuit or leakage, thus protecting the equipment and operators. |
|
Furnace shell |
High-quality cold-rolled steel plates are processed by CNC machine tools, and then welded, ground, polished, phosphated, pickled, and electrostatically sprayed with plastic powder on the surface. |
|
Quality Certification |
ISO9001 CE SGS TUV |
|
Standard configuration |
1. Furnace 1 set 2. Power cord 3 meters 3. Thermocouple 2 4. Manual 1 set 5. High temperature gloves 1 pair |
