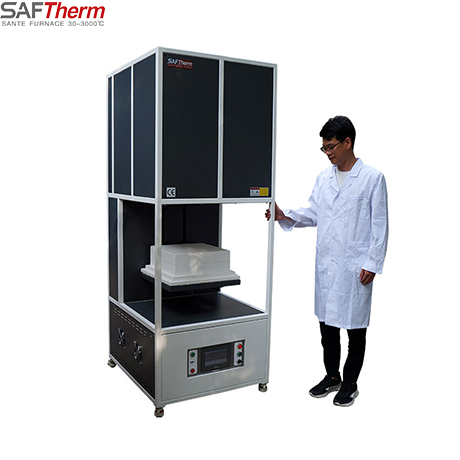

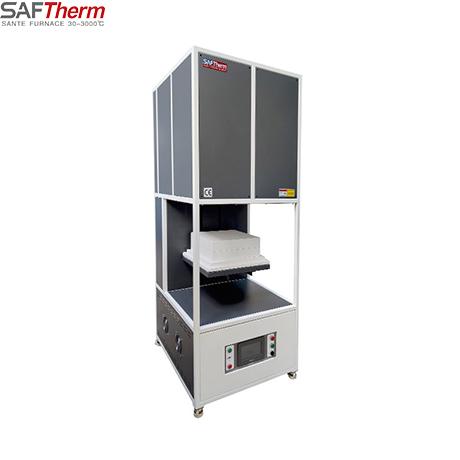

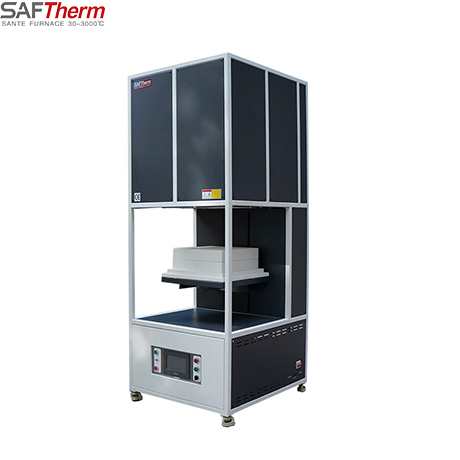

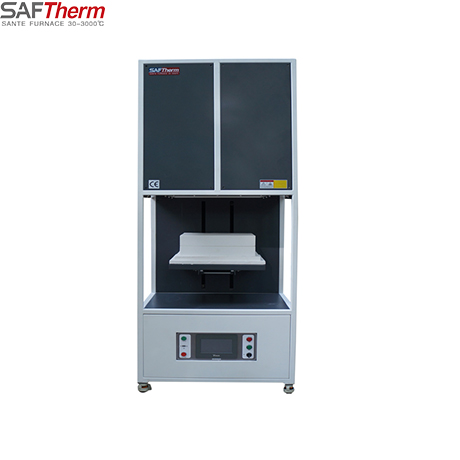

1700°C Bottom Loading Funraces

Description

The 1700°C Bottom Loading Furnace Furnace is mainly designed and developed for colleges and universities, scientific research institutes, factories and enterprises, and other industrial laboratories. It is used in the fields of new materials such as metal materials, ceramic materials, nano-materials, and semiconductor materials; it can also be used in tooth sintering in the denture industry.

Features

Furnace shell

1、The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti- corrosion.
2、 Sturdy metal tank shell structure with low furnace surface temperature
3、Furnace door with flange type sealing structure and manual screw compression with side door way for easier operating

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and other high-quality insulation board heat shielding backing, which does not contain asbestos components, low heat loss and low energy consumption

Heating system

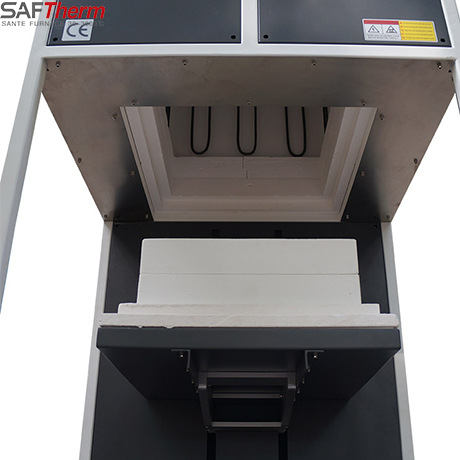

1、 High-quality resistance heating element installed with free heat radiation heating in the furnace cavity, which is energy saving and high efficiency, for long service life

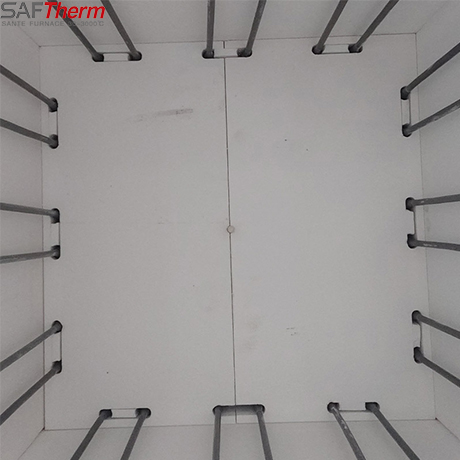

2、Ring heating element installed on all sides can achieve good homogeneity in the furnace chamber
3、Optional accessories like furnace top exhaust port is available and also optional with furnace bottom with regulated air inlet port
4、The charging container can be stacked on the bottom of the furnace, and two or three layers of materials can be placed in different furnace types

Temperature Control Panel

1、PID controller with SSR\SCR control mode for precise temperature control
2、International standard thermocouple with long service life

Program Controller

1、Advanced controllers for complex process needs
2、Simple and direct operation with flexible programming
3、Programmable 30 program segments for a single curve .
4、Over temperature and fault alarm with automatic safety protection

Technical Parameter

Product Model	Chamber Size（mm）	Volume	Max Temperature	Working Temperature	Voltage	Power	Heating Element	Temperature control accuracy
STS-120-12	Φ120×120	2L	1200℃	1100℃	220V	2KW	HRE	±1℃
STS-150-12	Φ150×150	3L	1200℃	1100℃	220V	3KW	HRE	±1℃
STS-200-12	Φ200×200	6L	1200℃	1100℃	220V	4KW	HRE	±1℃
STS-300-12	Φ300×300	20L	1200℃	1100℃	380V	6KW	HRE	±1℃
STS-120-14	Φ120×120	2L	1400℃	1350℃	220V	3KW	SIC	±1℃
STS-150-14	Φ150×150	3L	1400℃	1350℃	220V	4KW	SIC	±1℃
STS-200-14	Φ200×200	6L	1400℃	1350℃	220V	5KW	SIC	±1℃
STS-300-14	Φ300×300	20L	1400℃	1350℃	380V	6KW	SIC	±1℃
STS-120-17	Φ120×120	2L	1700℃	1600℃	220V	3KW	MoSi2	±1℃
STS-150-17	Φ150×150	3L	1700℃	1600℃	220V	4KW	MoSi2	±1℃
STS-200-17	Φ200×200	6L	1700℃	1600℃	220V	4KW	MoSi2	±1℃
STS-300-17	Φ300×300	20L	1700℃	1600℃	380V	8KW	MoSi2	±1℃

Accessory

1. Furnace body	1 set
2. Temperature controller	1
3. Power cord 3 meters	1
4. Thermocouple	1
5. Instruction manual	1
6. Crucible Tong	1
7. High temperature gloves	1 pair

Advantage

1 Year Warranty We can provide very professional commercial support, technical support and document support
22 Years Experience We have more than 22 years of experience in Electirc Heating Equipment,Excellent temperature field uniformity is our strength
R&D Design Team Professional design and development team, to provide you with professional and reasonable heat treatment solutions
Quality Control Rigorous quality control process, each process process traceable, to provide customers with high quality products
