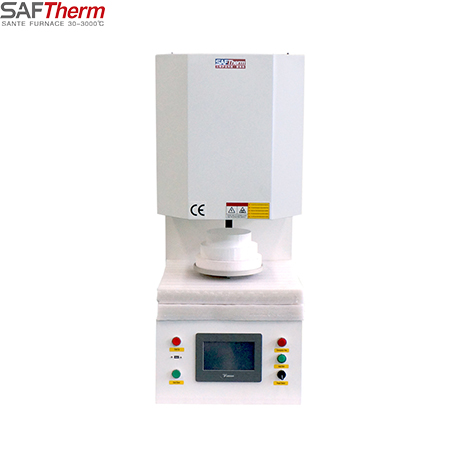

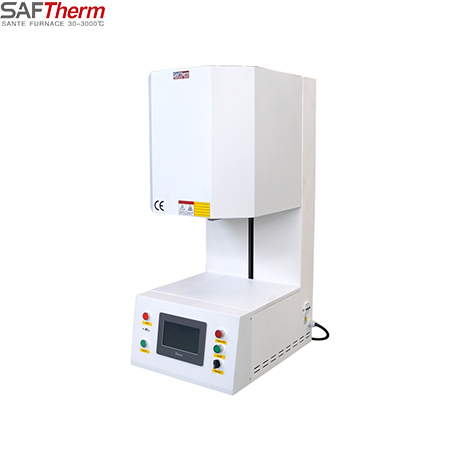

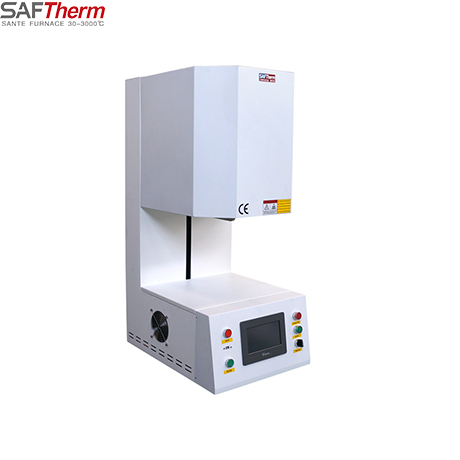

1700°C Zirconia Sintering Furnace

Furnace shell

1. 7-inch embedded menu touch screen system, real-time process curve display, data can be exported, 15 sintering curves of various zirconium block manufacturers can be pre-stored, called at any time, each curve can edit 30 program segments
2. High-purity alumina ceramic fiber is used as the lining of the furnace, which is pure and pollution-free, and the iron content is ≤440ppm
3. The pure U-shaped silicon-molybdenum rod is used as the heating element, which will not cause secondary pollution of the crown, and can realize the fast burning process of the single crown
4. Cylindrical furnace design structure, annular heating, uniform temperature field, excellent crown permeability and consistency
5. Automatic bottom-loading furnace bottom, precision screw and high-precision linear slider, the lifting is stable without shaking, and the operation is convenient
6. Two φ100mm sintering trays can be placed in a single furnace, and about 25-50 zirconia crowns can be placed in it to achieve mass production
7. Modular safety design, with sound and light alarm functions for over-temperature, overload, and broken coupler, and automatically complete equipment protection actions
