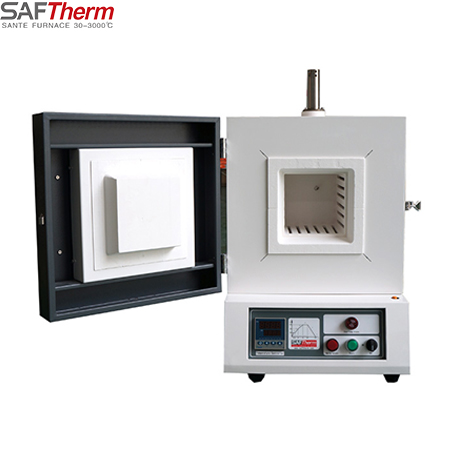

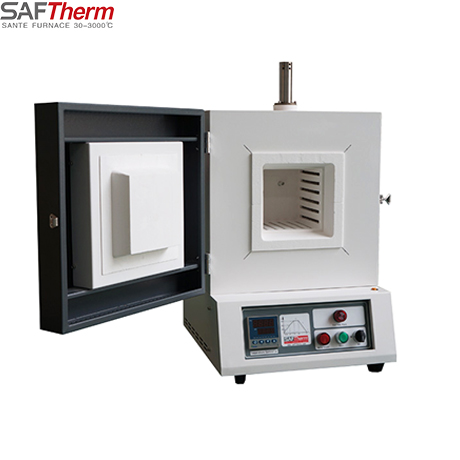

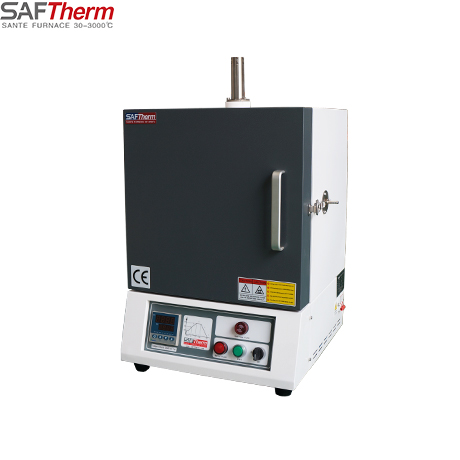

1200°C Benchtop Muffle Furnace（STM-12-12）

Description

1200℃ muffle furnace (box-type resistance furnace) is used in the sintering and heating of new materials such as metal materials, ceramic materials, nano-materials, semiconductor materials, etc. High temperature heat treatment.

Features

Furnace Shell

1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
2. Strong metal frame shell structure, low furnace surface temperature.

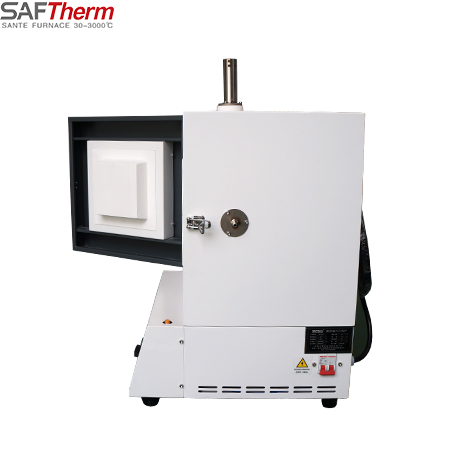

3. Side-opening furnace door structure, the furnace door opens to the right, easy to operate.

Refractory Material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating System

1. High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the surface of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life.
2. Heating on three sides (left and right sides and furnace bottom), so as to achieve good uniformity in the furnace.
3. The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing.

Temperature Control Panel

1. PID and SSR control mode, precise temperature control.
2. Internationally standardized N-type nickel-chromium-silicon thermocouple with a temperature measurement range of 0-1300℃ and a long service life.
3. The furnace door is equipped with a door-opening power-off safety protection switch.

Program Controller

1. Advanced controllers that meet complex process requirements
2. Simple and direct operation, flexible programming
3. Programmable 30 program segments for a single curve
4. Over temperature and fault alarm, automatic safety protection

Technical Parameter

Model	STM-1-10	STM-3-12	STM-6-12	STM-8-12	STM-12-12	STM-18-12	STM-30-12
Chamber size（W xD xH）mm	100 x100x100	150 x150x150	180x230x150	200x300x120	200 x300x200	250 x300x250	300 x500x200
Outer size（W xD xH）mm	250 x240x350	430x465x620	460x570x660	480 x630x630	480 x630x710	550x635x780	600 x870x735
Max temperature	1200℃
Working temperature	1100℃
Power supply	220V/1.2KW	220V/2.5KW	220V/3KW	220V/3KW	220V/4KW	220V/6KW	380V/7.5KW
Heating element	HRE Alloy resistance wire
Chamber material	Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration
Temp.Precision	±1℃
Termocouple	N Type termocouple
Temperature controller	Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling
Heating rate	1-25℃/min free adjustment
Furnace structure	Furnace temperature control integrated structure
Equipment protection	Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically
Safety protection	The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
Furnace shell	High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder
Quality certificate	ISO9001 CE SGS TUV
Standard packing	1. Furnace body 1 set 2. Temperature controller 1 set 3. Power cord 3 meters 4. Thermocouple 1 set 5. Manual 1 copy 6. Crucible pliers 1 set 7. High temperature gloves 1 pair
Optional	1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves

Accessory

1. Furnace body	1 set
2. Temperature controller	1
3. Power cord 3 meters	1
4. Thermocouple	1
5. Instruction manual	1
6. Crucible pliers	1
7. High temperature gloves	1 pair
