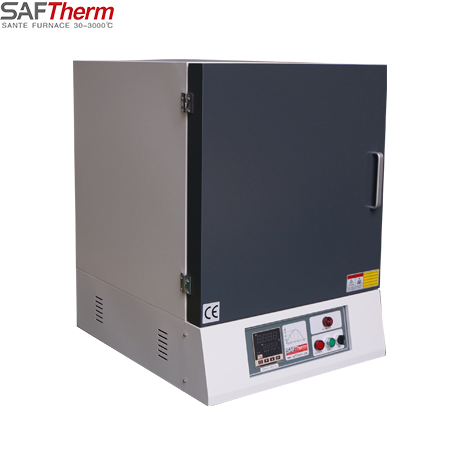

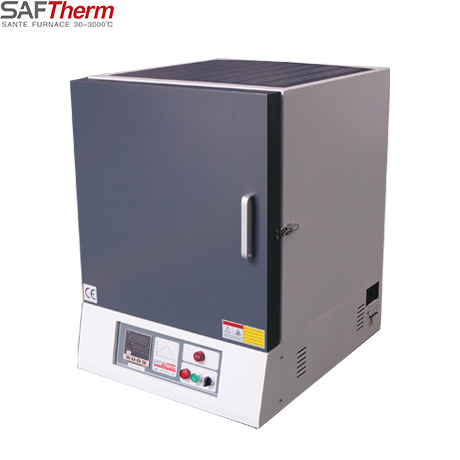

1400°C Laboratory Muffle Furnace(STM-36-14)

  • Model No. :STM-36-14
  • Chamber Size(W*D*H) :300x400x300MM
  • Outer Dimension(W*D*H) : 660x800x910MM
  • Continuous Temp. :1300℃
  • Max Temp.:1400C
  • Heating Element: Silicon Carbide Rod(SIC) Heater
  • Power Supply:380V/12kw
  • Temperature Precision: ±1℃
  • Thermocouple: S type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

1400℃ muffle furnace (box-type resistance furnace) is used in the sintering and sintering of new materials such as metal materials, ceramic materials, nano-materials, semiconductor materials, etc. High temperature heat treatment.

Features

Furnace Shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
  2. Strong double-layer metal frame shell structure, low furnace surface temperature.
  3. Side-opening furnace door structure, the furnace door opens to the right, easy to operate.

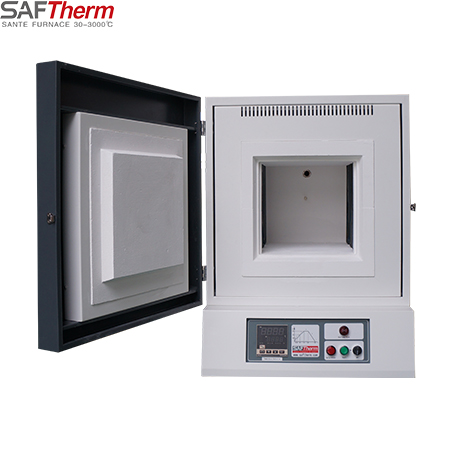

Refractory Material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption.

Heating System

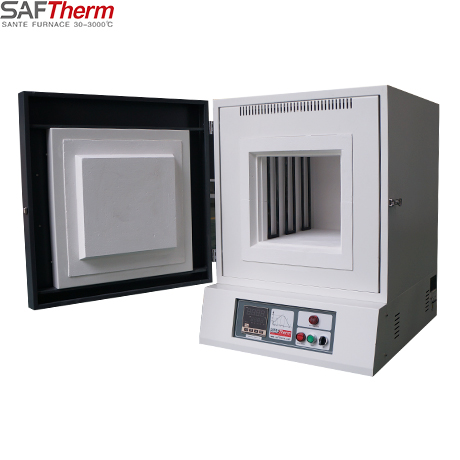

  1. The high-quality SIC heating element is safely and firmly installed on both sides of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life
  2. Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace
  3. The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing

Temperature Control Panel

  1. PID and SSR control mode, precise temperature control
  2. Internationally standardized S-type platinum-rhodium thermocouple, with a temperature measurement range of 0-1600℃ and a long service life
  3. The furnace door is equipped with a door-opening power-off safety protection switch

Program Controller

1. Advanced controllers that meet complex process requirements
2. Simple and direct operation, flexible programming
3. Programmable 30 program segments for a single curve
4. Over temperature and fault alarm, automatic safety protection

Technical Parameter

Model

STM-1.7-14

STM-3-14

STM-8-14

STM-12-14

STM-18-14

STM-36-14

STM-45-14

Chamber size

(W xD xH)mm

120 x120x120

150 x150x150

200x200x200

200x300x200

250 x300x250

300x400x300

300 x500x300

Outer size(W xD xH)mm

460 x500x720

490x530x750

575x610x825

590 x680x835

610 x700x860

650x770x900

975 x930x1200

Max temperature

1400℃

Working temperature

1350℃

Power supply

220V/2.5KW

220V/3KW

220V/5KW

220V/5KW

220V/6KW

380V/12KW

380V/14KW

Heating element

silicon carbide rod (SIC)

Chamber material

Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration

Temp.Precision

±1℃

Termocouple

S Type termocouple

Temperature controller

Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling

Heating rate

1-30℃/min free adjustment

Furnace structure

Furnace temperature control integrated structure

Equipment protection

Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically

Safety protection

The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators

Quality certificate

ISO9001   CE    SGS   TUV

Optional

1. Optional exhaust chimney for evacuation of volatile substances  2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible pliers 1
7. High temperature gloves  1 pair
