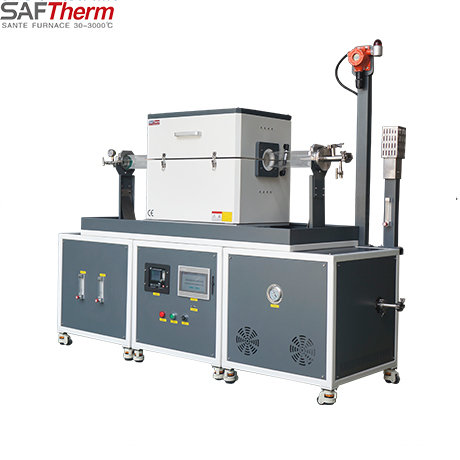

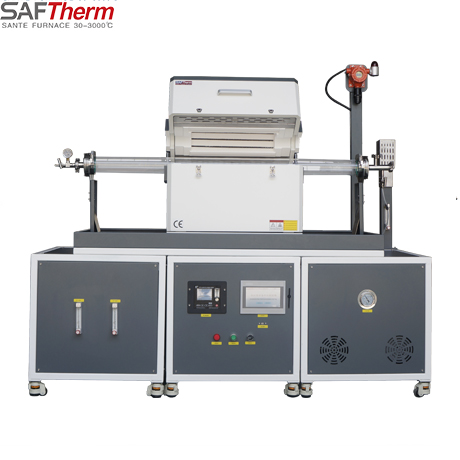

1200C Hydrogen Reduction Tube Furnaces(STG-60-12Q)

  • Model No. :STG-60-12Q
  • Quartz Tube(OD):Φ60×1200
  • Heating Zone Length : 440MM
  • Continuous Temp. :1100℃
  • Max Temp.:1200°C
  • Reactor Tube:Quartz Tube
  • Power Supply:380V/12kw
  • Heating Element: High Quality Alloy Resisance Wire(HRE)
  • Thermocouple: N type
  • Advantage
  • Related Cases
  • Related Products
Free Quote

Description

1200C hydrogen tube furnace The processing tube is made of high-quality Ni-based superalloy which never cracks and breaks at flowing Hydrogen gas. One 3M hydrogen detector is included which will shut down the Hydrogen gas generator and gas inlet valve immediately once detecting hydrogen gas leaking.

Features

Furnace shell

  1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
  2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
  3. Horizontal use mode, upper opening structure, easy to operate

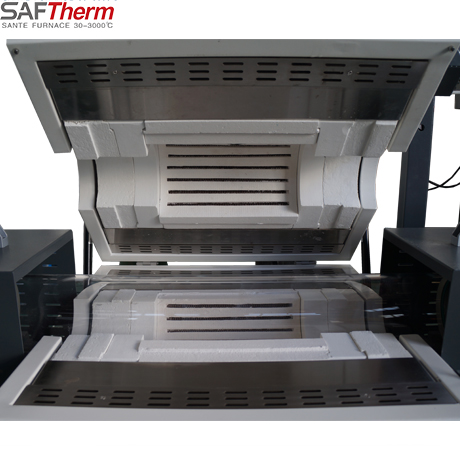

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

1.High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the inner surface of the furnace, thermal radiation heating in the furnace cavity, which is energy-saving and efficient, long service life.
2.Ring heating by resistance wire to achieve good uniformity in the furnace.

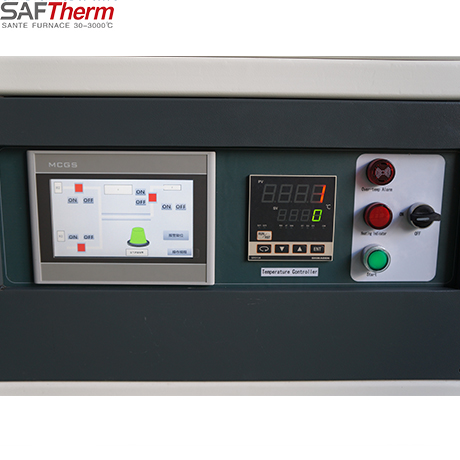

Temperature Control Panel

1.Advanced controllers that meet complex process requirements.
2.Programmable 30 program segments to realize automatic curve temperature control.
3.Over temperature and fault alarm, automatic safety protection.

Rotary System

1.The furnace tube adopts a gear transmission electric drive structure to rotate 360°, 12-20 rpm rotating speed, and the material is heated evenly in the furnace tube.
2.The furnace body can be tilted by electric drive, the tilt angle can be adjusted, and the material can enter and exit more smoothly.
3.With 304 stainless steel sealing flange, to obtain vacuum or atmosphere environment in the furnace tube.
4.High-quality quartz tubes, metal or alumina ceramic tubes can also be selected to adapt different working conditions.

Technical Parameter

ModelSTGX-60-12QSTGX-100-12QSTGX-150-12QSTGX-200-12Q
Reactor Quartz TubeΦ60×1200mmΦ100×1200mmΦ150×1500mmΦ200×1500mm
Heating Zone Length440mm440mm600mm600mm
Max Temp1200℃
Continue Temp1100℃
Heating ElementHigh quality Alloy Resistance Wire(HRE)
Chamber MaterialPolycrystalline inorganic alumina ceramic fiber materials
Temp Precision±1℃
ThermocoupleB-type national standard platinum rhodium thermocouple
Temp ControllerIntelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling
Heating Rate1-20℃/min free adjustment
Furnace StructureFurnace temperature control integrated structure; double-layer shell, air circulation and heat insulation
Equipment ProtectionModular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically
Safety ProtectionThe equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
Furnace ShellHigh-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder
CertificationISO9001   CE    SGS   TUV
The standard configuration1. 1 furnace body 2. 1 temperature controller 3. Power cord 3 meters 4. 1 thermocouple 5. 1 manual6. One furnace hook 7. One pair of high temperature gloves 8. Two pipe plugs 9. One set of sealing flange

Accessory

1. Furnace body 1 set
2. Temperature controller 1
3. Power cord 3 meters 1
4. Thermocouple 1
5. Instruction manual 1
6. Crucible pliers 1
7. High temperature gloves  1 pair
