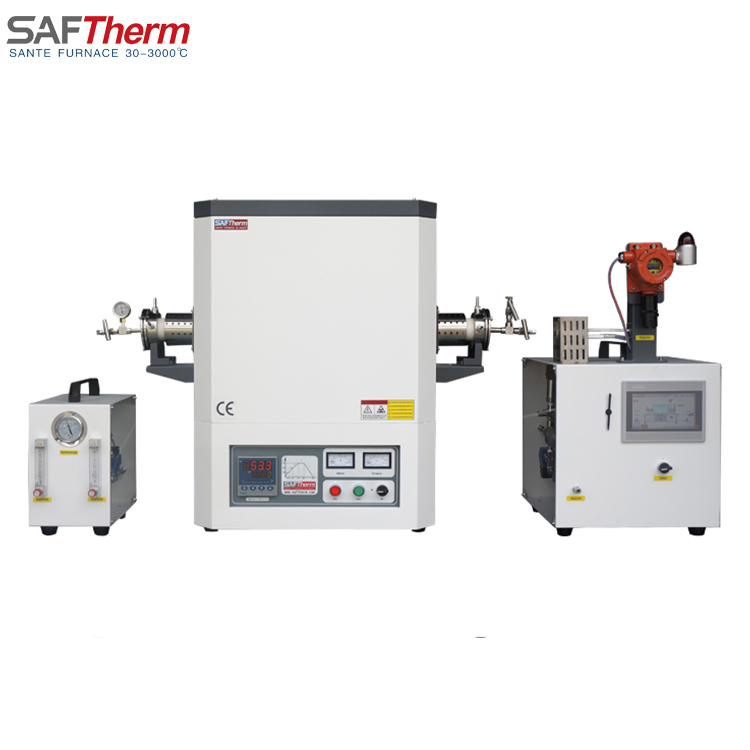

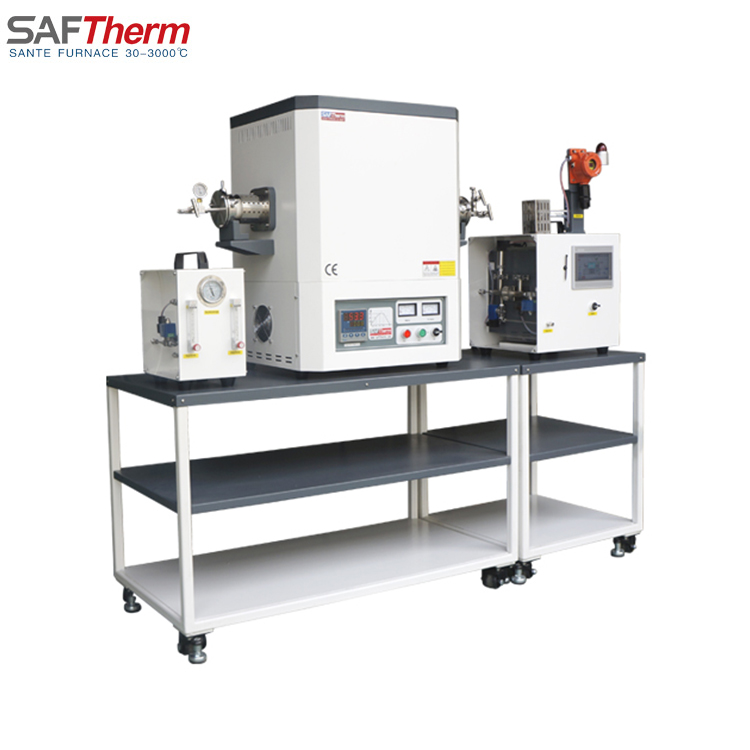

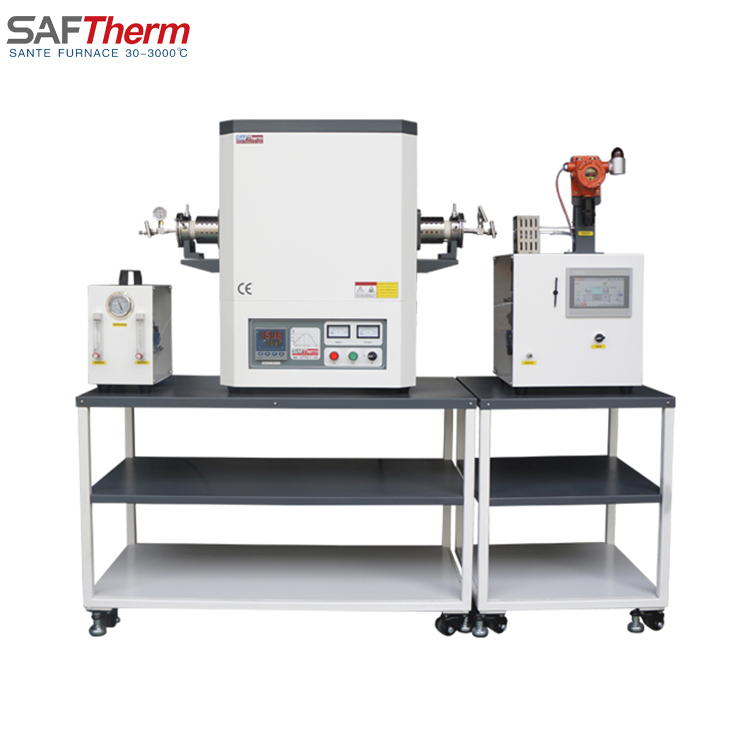

1700C Hydrogen Reduction Tube Furnaces（STG-60-17Q）

Description

hydrogen tube furnace The processing tube is made of high-quality Ni-based superalloy which never cracks and breaks at flowing Hydrogen gas. One 3M hydrogen detector is included which will shut down the Hydrogen gas generator and gas inlet valve immediately once detecting hydrogen gas leaking.

Features

Furnace shell

The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
Horizontal use mode, upper opening structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

1.High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the inner surface of the furnace, thermal radiation heating in the furnace cavity, which is energy-saving and efficient, long service life.
2.Ring heating by resistance wire to achieve good uniformity in the furnace.

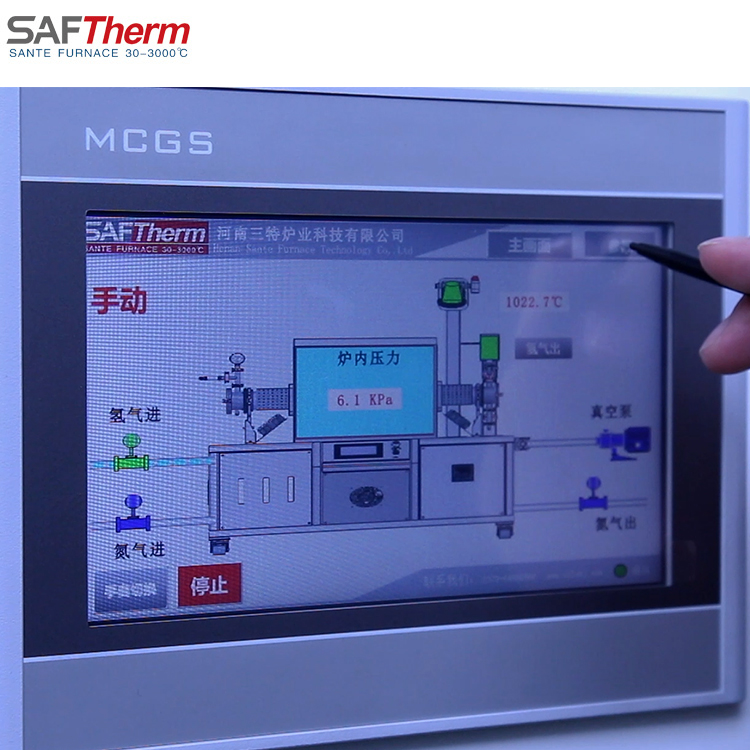

Temperature Control Panel

1.Advanced controllers that meet complex process requirements.
2.Programmable 30 program segments to realize automatic curve temperature control.
3.Over temperature and fault alarm, automatic safety protection.

Rotary System

1.The furnace tube adopts a gear transmission electric drive structure to rotate 360°, 12-20 rpm rotating speed, and the material is heated evenly in the furnace tube.
2.The furnace body can be tilted by electric drive, the tilt angle can be adjusted, and the material can enter and exit more smoothly.

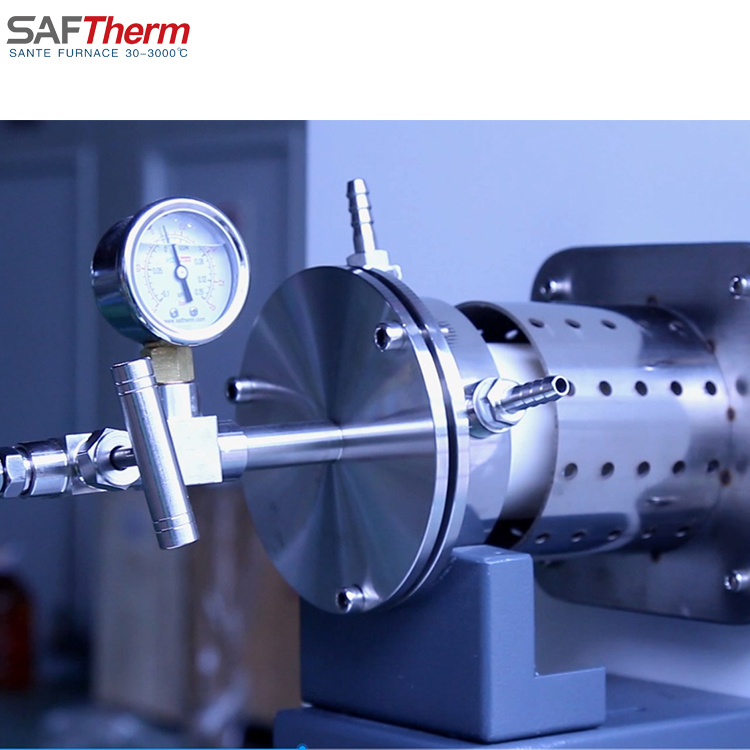

3.With 304 stainless steel sealing flange, to obtain vacuum or atmosphere environment in the furnace tube.
4.High-quality quartz tubes, metal or alumina ceramic tubes can also be selected to adapt different working conditions.

Technical Parameter

Model	STGX-60-17Q	STGX-100-17Q	STGX-150-17Q	STGX-200-17Q
Reactor Quartz Tube	Φ60×1200mm	Φ100×1200mm	Φ150×1500mm	Φ200×1500mm
Heating Zone Length	440mm	440mm	600mm	600mm
Max Temp	1700℃
Continue Temp	1600℃
Heating Element	High quality Molybdenum Disilicide（MoSi2）heater
Chamber Material	Polycrystalline inorganic alumina ceramic fiber materials
Temp Precision	±1℃
Thermocouple	N-type national standard platinum rhodium thermocouple
Temp Controller	Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling
Heating Rate	1-20℃/min free adjustment
Furnace Structure	Furnace temperature control integrated structure; double-layer shell, air circulation and heat insulation
Equipment Protection	Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically
Safety Protection	The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
Furnace Shell	High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder
Certification	ISO9001 CE SGS TUV
The standard configuration	1. furnace body 2. temperature controller 3. Power cord 3 meters 4. 1 thermocouple 5. 1 manual6. One furnace hook 7. One pair of high temperature gloves 8. Two pipe plugs 9. One set of sealing flange

Accessory

1. Furnace body	1 set
2. Temperature controller	1
3. Power cord 3 meters	1
4. Thermocouple	1
5. Instruction manual	1
6. pipe plugs	2
7. High temperature gloves	1 pair
