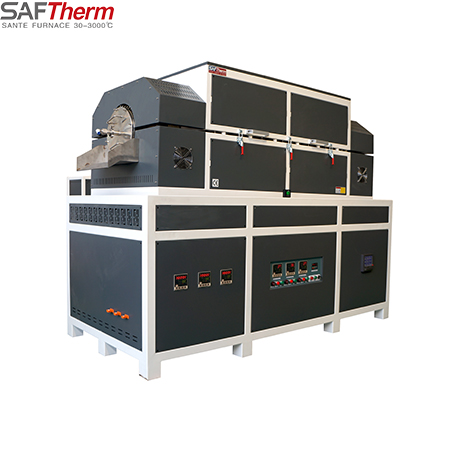

1200C Rotary Tilting Tube Furnace

Furnace shell

1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low

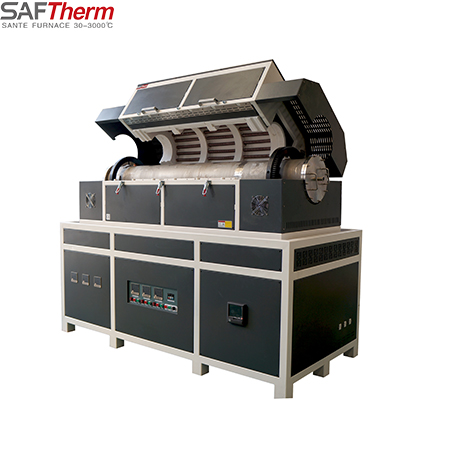

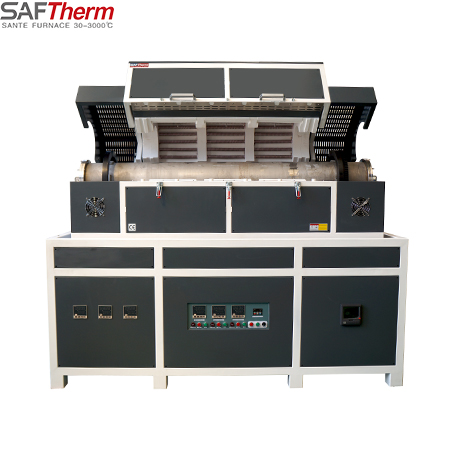

3. Horizontal use mode, upper opening structure, easy to operate

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

Heating system

1.High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the inner surface of the furnace, thermal radiation heating in the furnace cavity, which is energy-saving and efficient, long service life.
2.Ring heating by resistance wire to achieve good uniformity in the furnace.

Temperature Control Panel

1.Advanced controllers that meet complex process requirements.
2.Programmable 30 program segments to realize automatic curve temperature control.
3.Over temperature and fault alarm, automatic safety protection.

Rotary System

1.The furnace tube adopts a gear transmission electric drive structure to rotate 360°, 12-20 rpm rotating speed, and the material is heated evenly in the furnace tube.

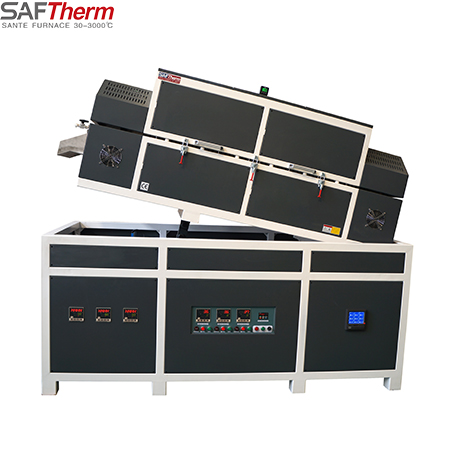

2.The furnace body can be tilted by electric drive, the tilt angle can be adjusted, and the material can enter and exit more smoothly.
3.With 304 stainless steel sealing flange, to obtain vacuum or atmosphere environment in the furnace tube.
4.High-quality quartz tubes, metal or alumina ceramic tubes can also be selected to adapt different working conditions.
